Technical Documentation: Cybersecurity and IoT in the Trucking Industry

1. Introduction
Connected commercial trucks today rely on a variety of sensors and electronic control units (ECUs) to improve safety, efficiency, and driver comfort. As vehicles incorporate more Internet of Things (IoT) technologies—such as LiDAR, radar, cameras, and advanced telematics—cybersecurity becomes critical.
This document provides guidance on secure design principles, threat modeling, and best practices for fleet operators, OEMs (Original Equipment Manufacturers), and third-party solution providers who integrate connectivity solutions into heavy-duty trucks.
2. System Architecture Overview
A typical modern truck architecture includes:
- Perception Sensors (e.g., LiDAR, radar, cameras) for Advanced Driver Assistance Systems (ADAS) and Automated Driving Systems (ADS).
- Communication Modules (e.g., cellular modems, Wi-Fi, DSRC/C-V2X) for telematics and over-the-air (OTA) updates.
- Embedded Control Units (ECUs) for engine control, transmission, braking, and steering.
- External Trailers & Modules that may have their own sensing and communication capabilities (e.g., trailer cameras, tire-pressure monitoring systems).

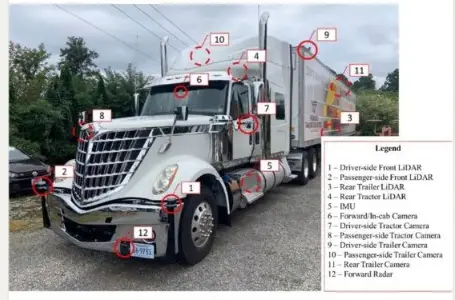

In the reference image, multiple sensors (front LiDARs, side LiDARs, forward radar, IMU, etc.) interface with the truck’s central data bus or specialized ADAS computing unit. Each sensor typically has its own firmware, which can be updated either via a wired maintenance port or wirelessly.

2.1 Example Sensor Layout
- (1) Driver-Side Front LiDAR & (2) Passenger-Side Front LiDAR: Used for short- and medium-range 3D mapping of the environment ahead.
- (3) Rear Trailer LiDAR: Monitors rear blind spots and assists in lane-change maneuvers.
- (4) IMU (Inertial Measurement Unit): Captures vehicle acceleration and orientation data for stability control and precise motion tracking.
- (5) Forward/In-Cab Camera: Collects video data for driver monitoring or vision-based ADAS functionality (e.g., lane departure, driver attentiveness).
- (6) Passenger-Side Tractor Camera & (7) Driver-Side Tractor Camera: Enables side and blind-spot monitoring.
- (8) Rear Trailer Camera: Provides visual input of what’s happening behind the trailer.
- (9) Passenger-Side Trailer LiDAR: Assists with collision avoidance on the trailer side.
- (10) Forward Radar & (12) Forward Radar (secondary): Monitors distance and relative speed of leading vehicles for adaptive cruise control and collision mitigation.
(Numbers in parentheses correlate to the labels in the sample diagram.)
3. Communications and Data Flows
3.1 Internal Vehicle Networks
- CAN Bus / Ethernet: Traditional vehicles use CAN bus for low-bandwidth communications among ECUs. Newer architectures increasingly rely on automotive Ethernet for high-bandwidth sensor data (e.g., video streams from cameras).
- Gateway ECUs: Serve as the main bridge between different internal sub-networks (e.g., powertrain, ADAS, infotainment). The gateway is a critical choke-point to implement security policies and intrusion detection systems.
3.2 External Connectivity
- Cellular (4G/5G) Modems: Often used for fleet telematics, over-the-air updates, and real-time monitoring of engine performance, cargo status, and driver behavior.
- Short-Range Wireless (Wi-Fi, Bluetooth, DSRC/C-V2X): Used for local connectivity—either for driver personal devices, roadside infrastructure communication, or maintenance.
- Over-the-Air (OTA) Updates: Software patches and firmware updates to the truck’s ECUs, sensors, or telematics control unit (TCU).
4. Threat Landscape
Because of increased connectivity, commercial trucks face a broad spectrum of cybersecurity threats:
- Unauthorized Access to ECUs: Attackers might exploit vulnerabilities in gateway ECUs or telematics units to gain control over brakes, steering, or powertrain systems.
- Sensor Spoofing or Jamming: LiDAR or radar systems can be manipulated by emitting interfering signals, degrading ADAS performance or triggering false collision warnings.
- Data Exfiltration: Sensitive telematics and logistics data (e.g., GPS location, cargo status) could be stolen or tampered with, jeopardizing cargo security and driver privacy.
- Ransomware or Fleetwide Attacks: If an attacker compromises the OTA update mechanism, entire fleets can be immobilized or demanded for ransom.
- Supply Chain Vulnerabilities: Third-party components and trailer attachments may introduce software or hardware with unknown security flaws.
5. Cybersecurity Best Practices
5.1 Secure Design & Architecture
- Network Segmentation: Separate safety-critical functions (e.g., braking, steering) from less critical or external-facing functions (infotainment, telematics) using firewalls or trusted gateways.
- Secure Boot & Firmware Validation: Ensure each ECU and sensor device verifies the authenticity of software images upon start-up (cryptographic signatures).
5.2 Authentication & Access Control
- Role-Based Access Controls (RBAC): Restrict maintenance privileges, telematics access, or debug interfaces to authorized personnel and devices.
- Multi-Factor Authentication for remote fleet management systems.
5.3 Secure Communications
- Encrypted Data Links: Use TLS or IPsec for data in transit—both internally (Ethernet, CAN-FD encryption if supported) and externally (cellular, Wi-Fi).
- Key Management: Implement secure generation, distribution, and storage of cryptographic keys for device authentication and OTA updates.
5.4 Intrusion Detection & Monitoring
- Host-Based Intrusion Detection Systems (HIDS): Monitor ECUs for abnormal process behavior or firmware anomalies.
- Network Intrusion Detection Systems (NIDS): Inspect traffic on internal automotive networks for signs of malicious activity or unusual patterns.
5.5 Over-the-Air (OTA) Update Security
- Integrity Checks: Use cryptographic signatures to validate update packages.
- Fallback Mechanisms: Implement a backup firmware image or a “safe mode” if an update fails or is deemed invalid.
- Version Control & Update Rollback: Maintain logs of version changes and provide a way to revert to a known safe version if issues arise.
5.6 Incident Response & Patching
- Rapid Patching Mechanism: Have processes in place to release and distribute critical security patches quickly across the fleet.
- Forensic Data Logging: Retain system logs in secure storage to investigate potential breaches or anomalies.
6. Regulatory and Compliance Considerations
- NHTSA Guidelines: Follow best practices as recommended by the U.S. National Highway Traffic Safety Administration (NHTSA) regarding automotive cybersecurity.
- ISO/SAE 21434: Align with the international standard for road vehicle cybersecurity management.
- UNECE WP.29: Be aware of UN regulations (if operating in applicable regions) that mandate cybersecurity and software update management systems.
7. Testing and Validation
- Penetration Testing: Conduct regular (annual or more frequent) security assessments of both onboard systems and cloud infrastructure.
- Fuzz Testing: Randomly generate input signals to stress-test ECUs and networks, revealing vulnerabilities or unexpected behaviors.
- Simulation & Digital Twins: Model truck operation and sensor data in a virtual environment to evaluate cybersecurity defenses against varied threat scenarios.
8. Operational Guidelines for Fleet Operators
- Train Drivers & Technicians: Offer basic cybersecurity training to prevent social engineering attacks, phishing attempts, and unauthorized device connections.
- Monitor Fleet Health: Use a fleet management dashboard that aggregates sensor data and intrusion alerts to quickly detect anomalies.
- Limit Physical Access: Lock down onboard diagnostic ports and restrict physical access to essential personnel only.
9. Conclusion
The rapid adoption of IoT and advanced sensing in trucking has introduced tremendous benefits—improved safety, efficiency, and real-time fleet visibility. However, these same technologies create new cybersecurity risks that can impact vehicle control, operational continuity, and data privacy. A robust, layered security strategy—spanning design, implementation, and ongoing maintenance—is essential to protect trucks on the road and ensure the integrity of the commercial transportation ecosystem.
Recommended Next Steps
- Develop or update a Cybersecurity Management System (CSMS) aligned with ISO/SAE 21434.
- Perform a comprehensive risk assessment specific to your truck architecture, including any trailer integrations.
- Collaborate with component suppliers and telematics providers to maintain a secure software supply chain.
